Raytheon’s high-energy laser systems use photons, or particles of light, to carry out military missions and civil defense. This directed energy technology enables detection of threats, tracking during maneuvers, and positive visual identification to defeat a wide range of threats, including unmanned aerial systems, rockets, artillery and mortars.
HIGH-ENERGY LASER
See how Raytheon Technologies laser weapons protect people and assets against short-range aerial threats.

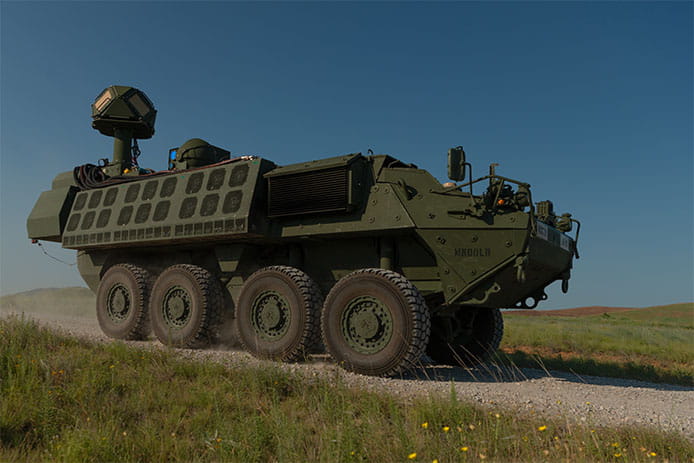

Download PDFThe directed energy weapon system — part of the U.S. Army’s Directed Energy Maneuver-Short Range Air Defense, or DE M-SHORAD — acquires, tracks, targets and defeats mortars and large drones in complex swarming scenarios.

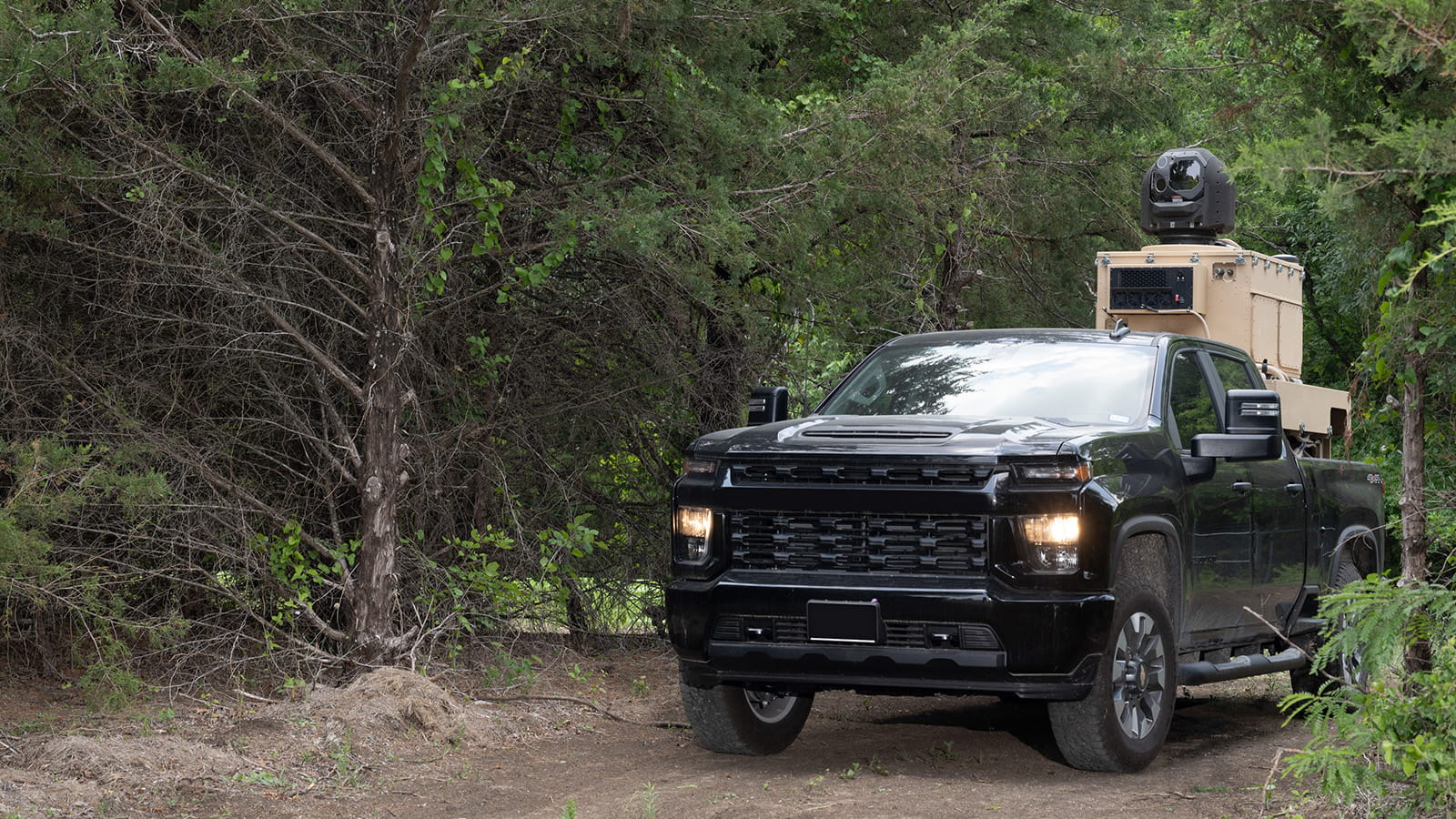

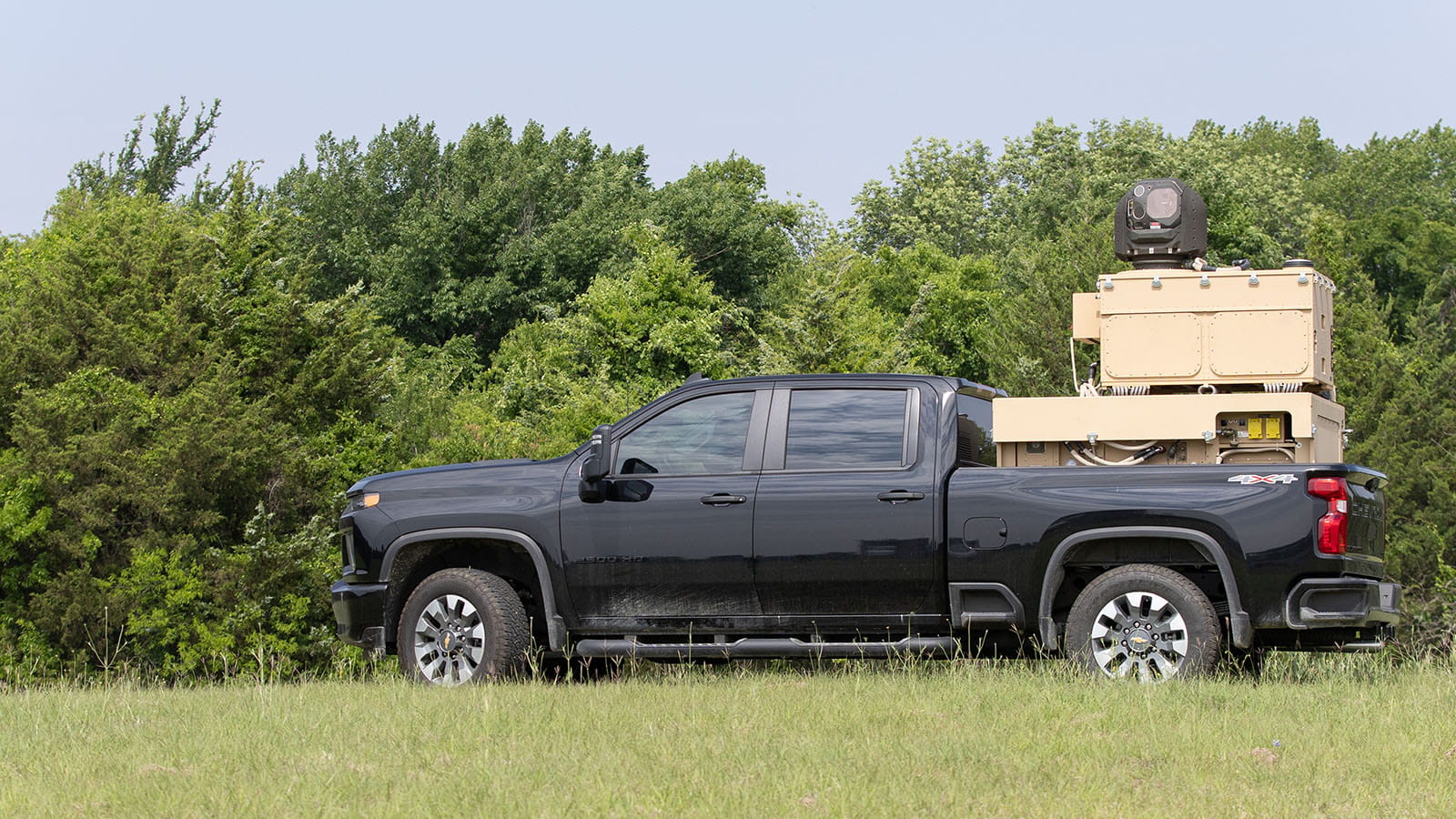

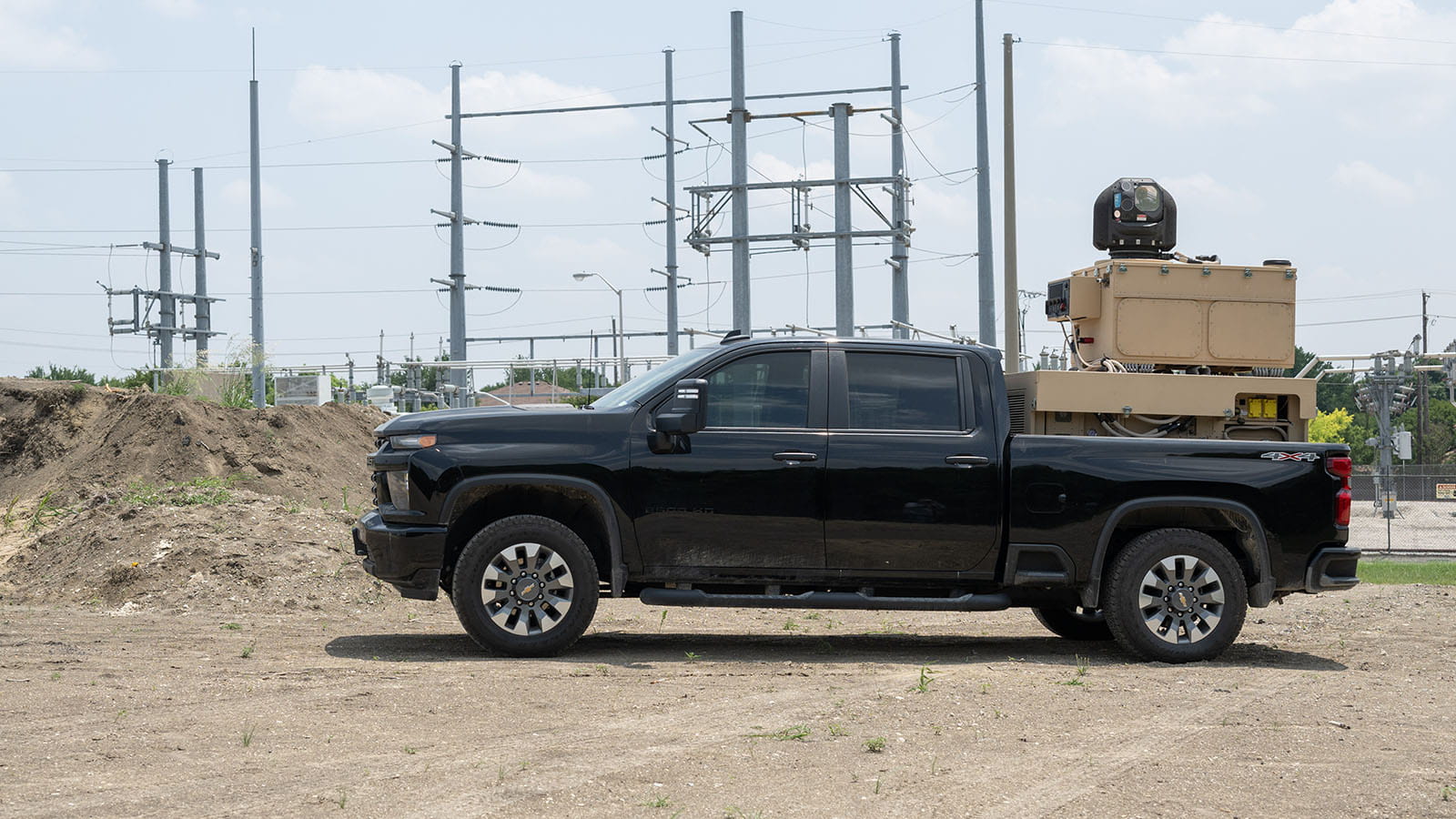

The U.S. Air Force’s new palletized laser weapon is the first 10 kilowatt-class laser built to U.S. military specifications in a stand-alone configuration. It can be moved and mounted anywhere it’s needed for counter-drone missions. Known as “H4,” it is the fourth operational laser weapon system that Raytheon Technologies has delivered to the Air Force. It is shown here on the move in a civilian pick-up truck.
10kW palletized laser weapon
White Sands
The U.S. Air Force’s new palletized laser weapon is the first 10 kilowatt-class laser built to U.S. military specifications in a stand-alone configuration. It can be moved and mounted anywhere it’s needed for counter-drone missions. Known as “H4,” it is the fourth operational laser weapon system that Raytheon Technologies has delivered to the Air Force. It is shown here on the move in a civilian pick-up truck.
10kW palletized laser weapon
White Sands
The U.S. Air Force’s new palletized laser weapon is the first 10 kilowatt-class laser built to U.S. military specifications in a stand-alone configuration. It can be moved and mounted anywhere it’s needed for counter-drone missions. Known as “H4,” it is the fourth operational laser weapon system that Raytheon Technologies has delivered to the Air Force. It is shown here emplaced to protect critical infrastructure.
10kW palletized laser weapon
White Sands

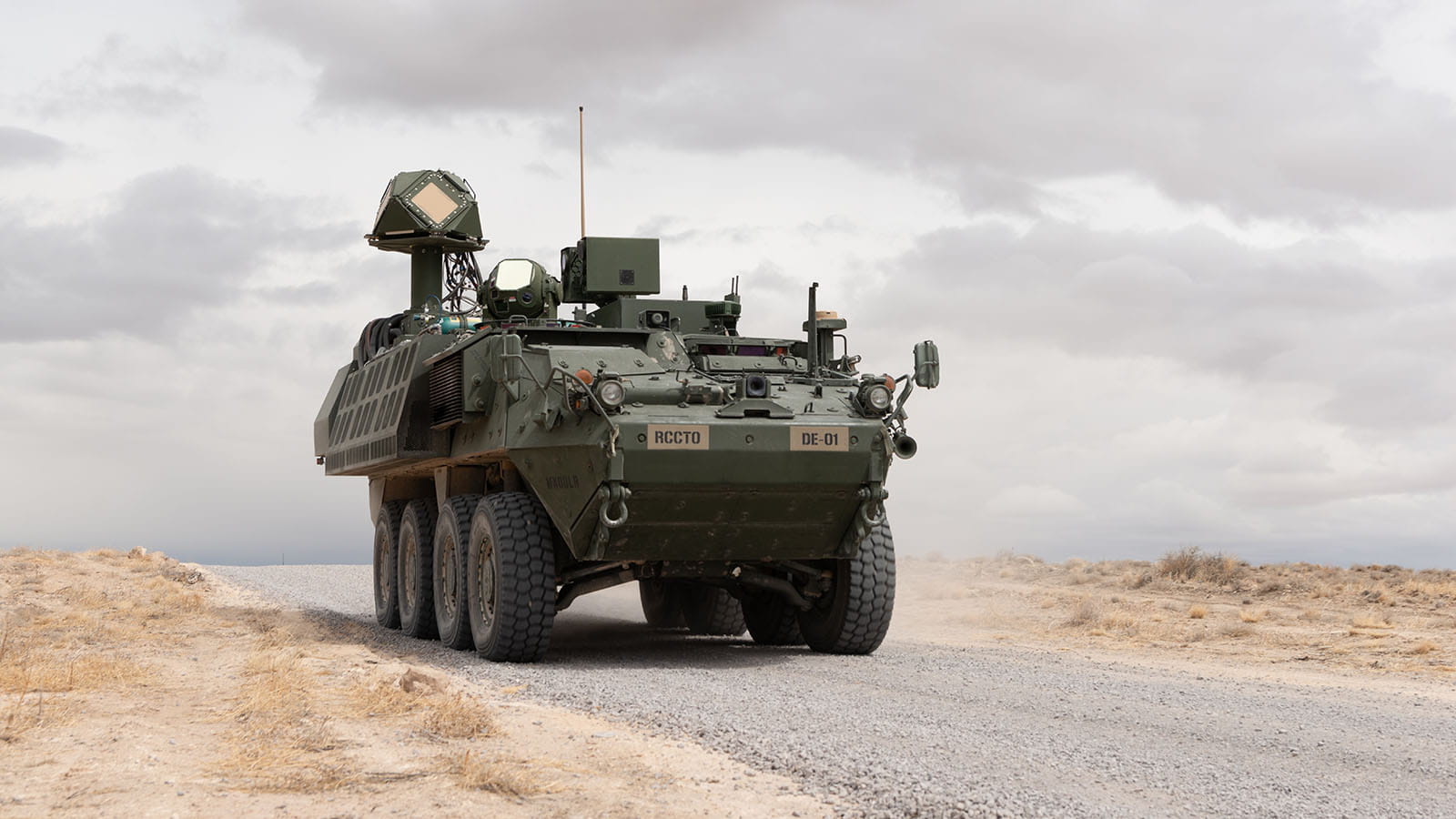

A 50 kilowatt-class laser mounted on a U.S. Army Stryker vehicle, shown during a live-fire exercise at White Sands Missile Range in New Mexico. The combat-capable weapon system is on track for operational fielding in 2022. Photo courtesy of U.S. Army.
DE MSHORAD 1
White Sands

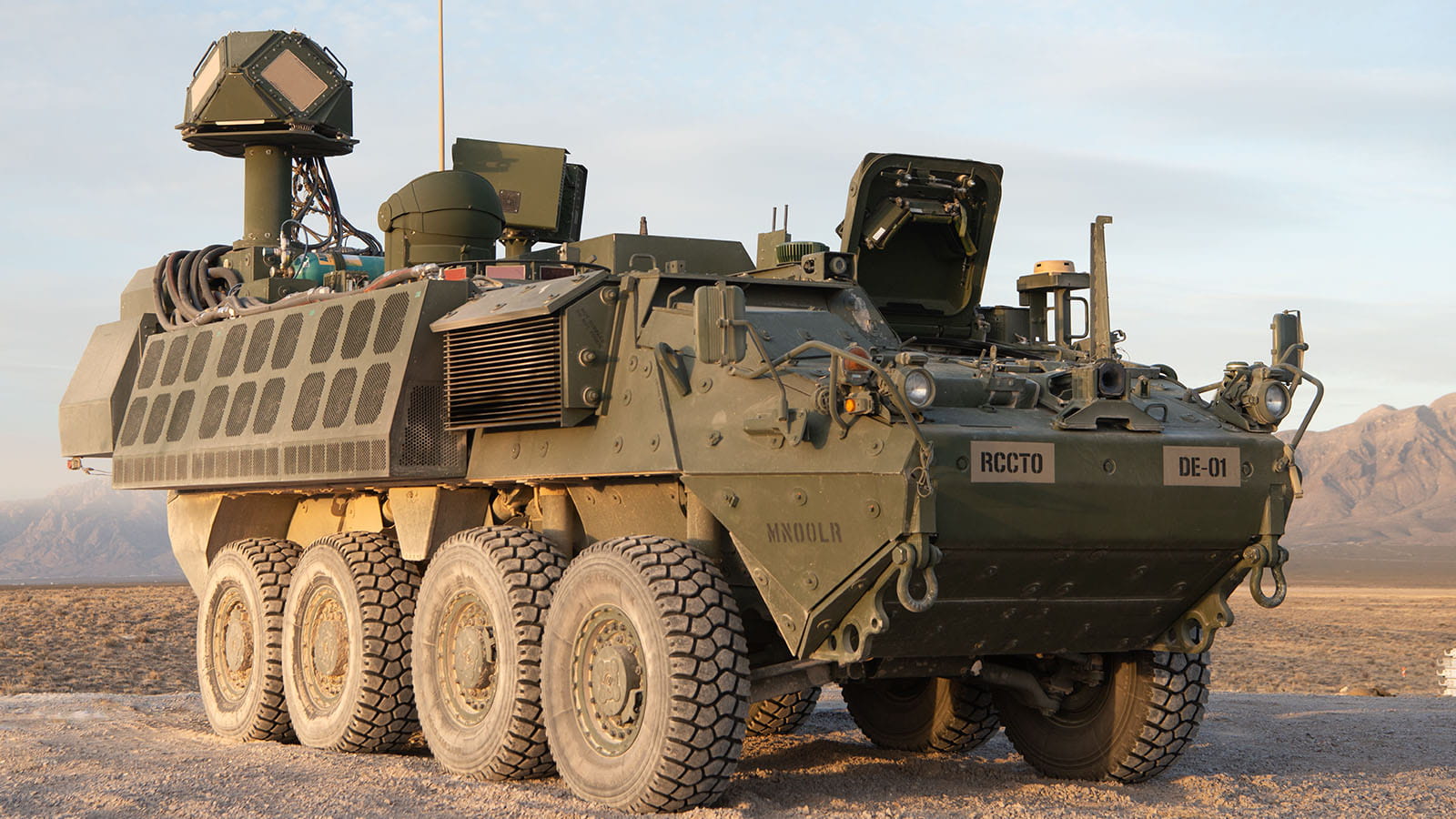

A 50 kilowatt-class laser mounted on a U.S. Army Stryker vehicle, shown during a live-fire exercise at White Sands Missile Range in New Mexico. The combat-capable weapon system is on track for operational fielding in 2022. Photo courtesy of U.S. Army.
DE MSHORAD 2
White Sands

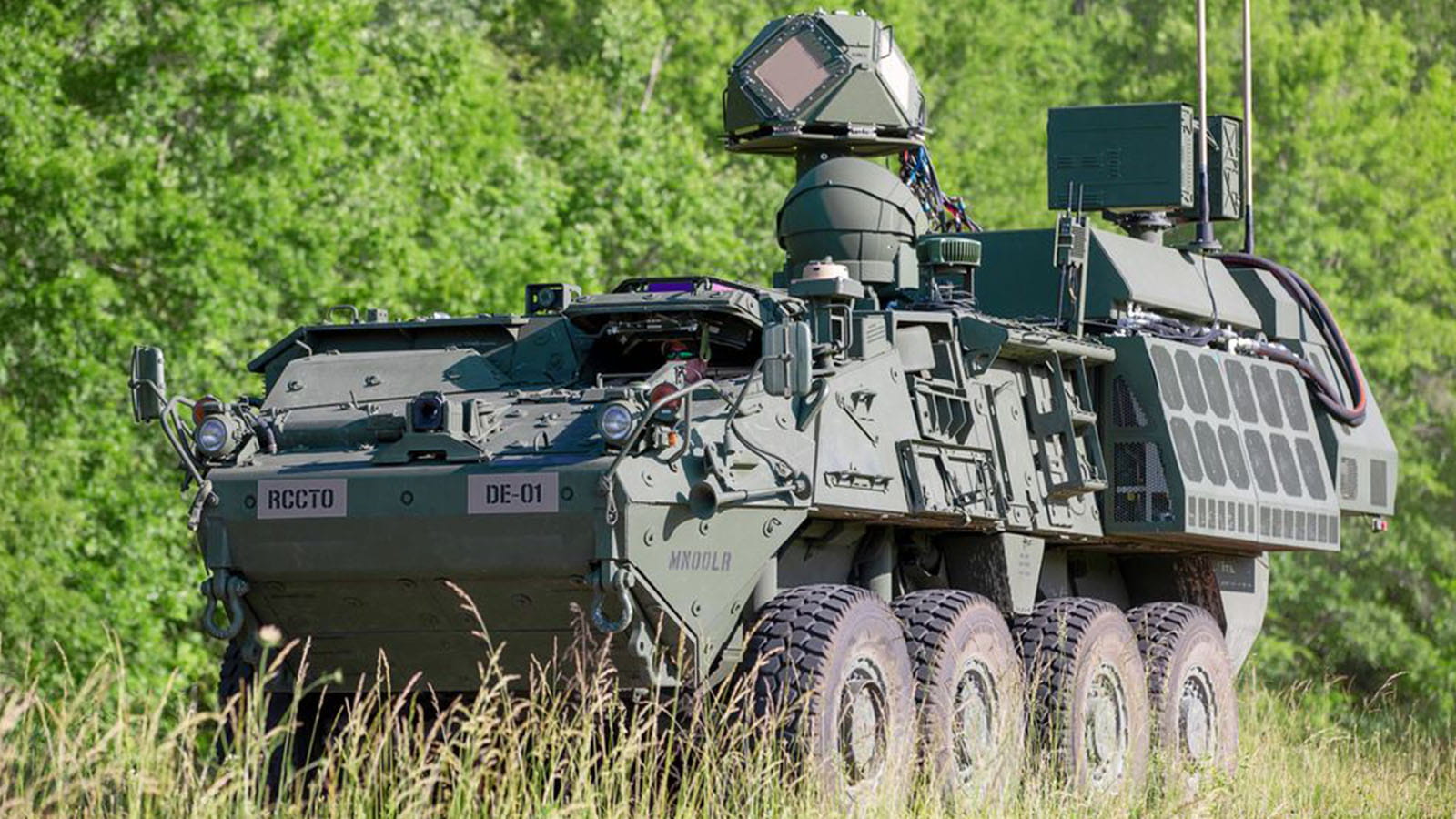

A 50 kilowatt-class laser mounted on a U.S. Army Stryker vehicle, shown during a live-fire exercise at at Fort Sill in Oklahoma. The combat-capable weapon system is on track for operational fielding in 2022. Photo courtesy of U.S. Army.
DE MSHORAD 3
Fort Sill
Our laser systems are operational now

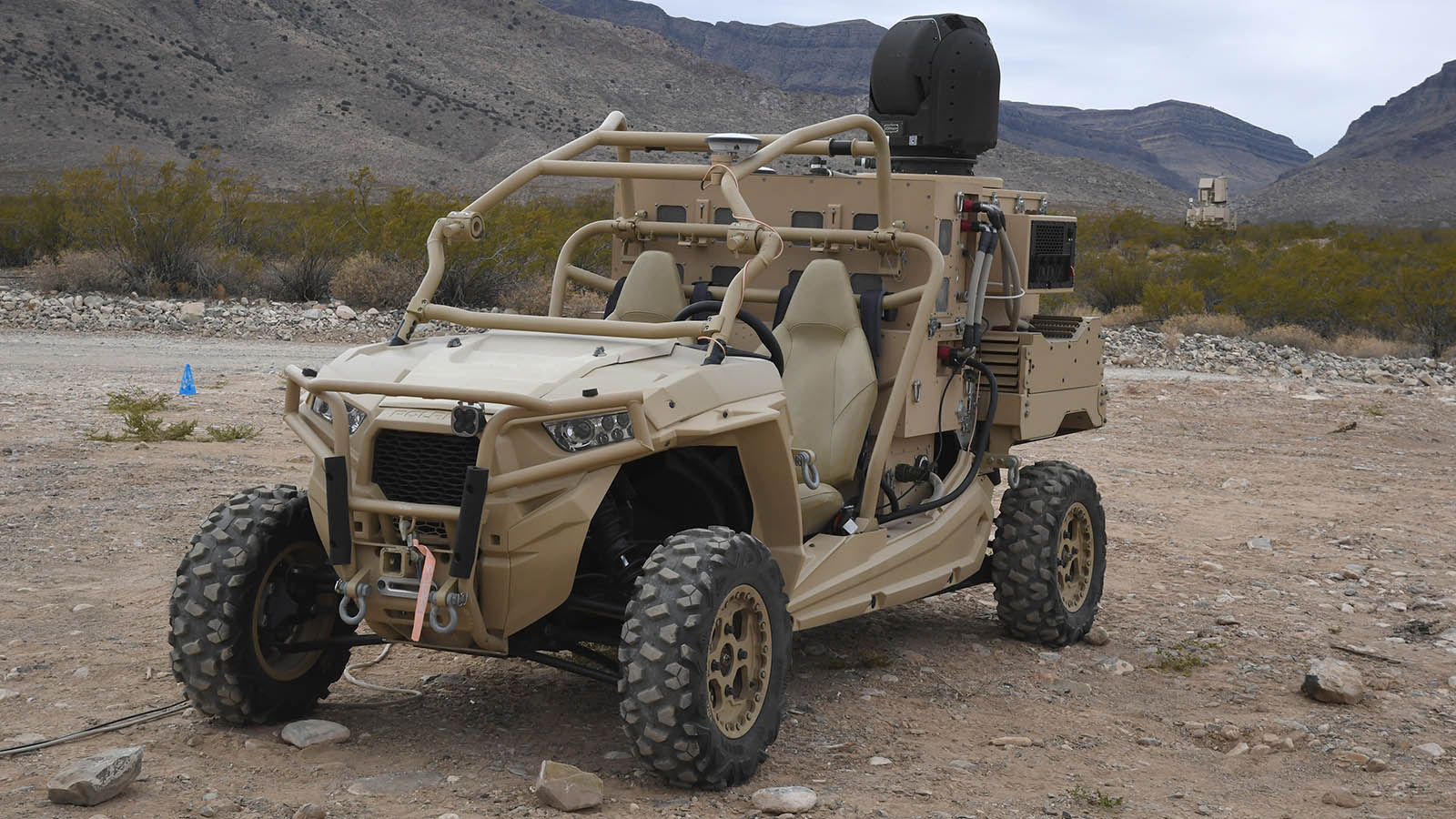

In 2019, the U.S. Air Force deployed our first High-Energy Laser Weapon System, HELWS, overseas, and it has more than 25,000 hours of operation. Certified for use in combat, multiple additional systems are now in theater.
The right defense for a range of targets
Raytheon laser weapon systems work on land, in the air and at sea, providing 360-degree coverage that protects bases, airports, stadiums and other high-value military or civilian targets. The system’s open architecture adapts to the demands of the mission, while ruggedized packaging means it can be used as a standalone system or rapidly installed on a variety of military platforms. Raytheon has successfully completed full installation and testing on Army combat vehicles as well as an Apache attack helicopter.
Cost-effective solution for countering drones, rockets, artillery and mortars
HEL is an affordable and viable option to protect military and critical infrastructure, and rapidly defeat threats. With a low cost-per-shot ratio, lasers offer a nearly infinite number of shots, minimal logistics and precision accuracy with very low collateral damage. It is an affordable alternative to traditional munitions.
Raytheon High-Energy Lasers
Performance
Rapid Integration
Modular
Commonality
- Automated cueing to target from a full spectrum of electro-optical/infrared sensors, reducing operator workload and time of engagement.
- Scalable power level to respond to different threat types and extend reach to tactically relevant ranges.
- Proven reliability and production readiness.
Readily integrates into Command and Control structures via standard Ethernet connection, providing handoffs from other sensors like radars. C2 integration also gives HEL operators updated and precise target information and visual battle damage.
- By using readily available, off-the-shelf components, we can configure our system to suit a variety of platforms. Plus, the system can be easily maintained.
- Size, weight and power are optimized to integrate across multiple fixed and mobile platforms, and mission spaces.
Our laser weapons are proven interoperable with a long list of existing air defense systems.
