The heart of mid-size business jets.

Powering the majority of mid-size jets, the PW300 engine offers highly dependable, fuel-efficient power for mid-size to heavy jets. The ideal choice for corporate travel, this quiet engine combines performance, fuel efficiency and value.

Overview

The PW300 turbofan engine family is the engine of choice for mid-size jets, thanks to its outstanding reliability, durability, and operating economics.

10Products-14BAE-PW300-Overview-Family-card-800x450

The PW300 family

The PW300 family comprises 4 engine series and 13 models, ranging from 4,700 to 8,000 pound thrust.

10Products-14BAE-PW300-Overview-Clean-card-800x450

Clean and quiet performance

The PW300 is built with  TALON™ combustion and advanced shock management fan technologies, also ensuring quiet and effective performance. Furthermore, the latest full-authority digital engine control (FADEC) in many of the PW300 models provides reduced pilot workload and advanced engine health monitoring/diagnostics assuring a high standard in aircraft dispatch availability.

10Products-14BAE-PW300-Overview-Global-card-800x450

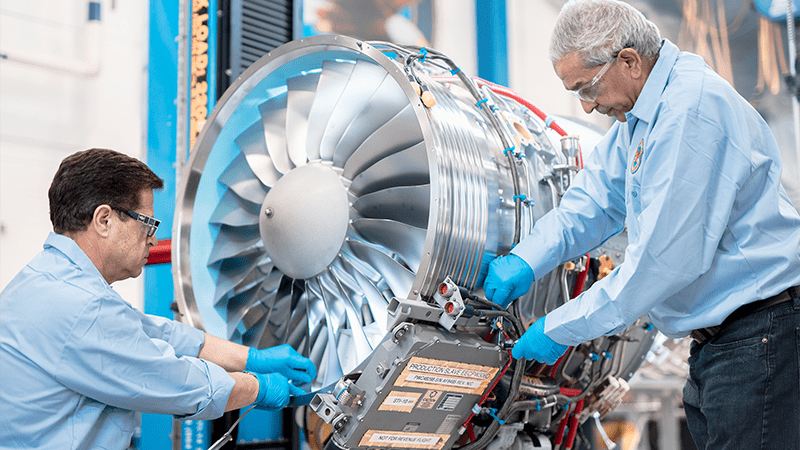

Global customer support

Operators of PW300 engines are supported by Pratt & Whitney's industry-leading global customer support. This includes over 30 Pratt & Whitney-owned and designated service facilities around the world, more than 100 field support representatives on all major continents, a 24/7 Customer First Centre for rapid expert support, the most advanced diagnostic capabilities for this market and the largest pool of Pratt & Whitney rental and exchange engines in the industry.

Thirteen Models in the 4,700 to 8,000 Pound Thrust Class

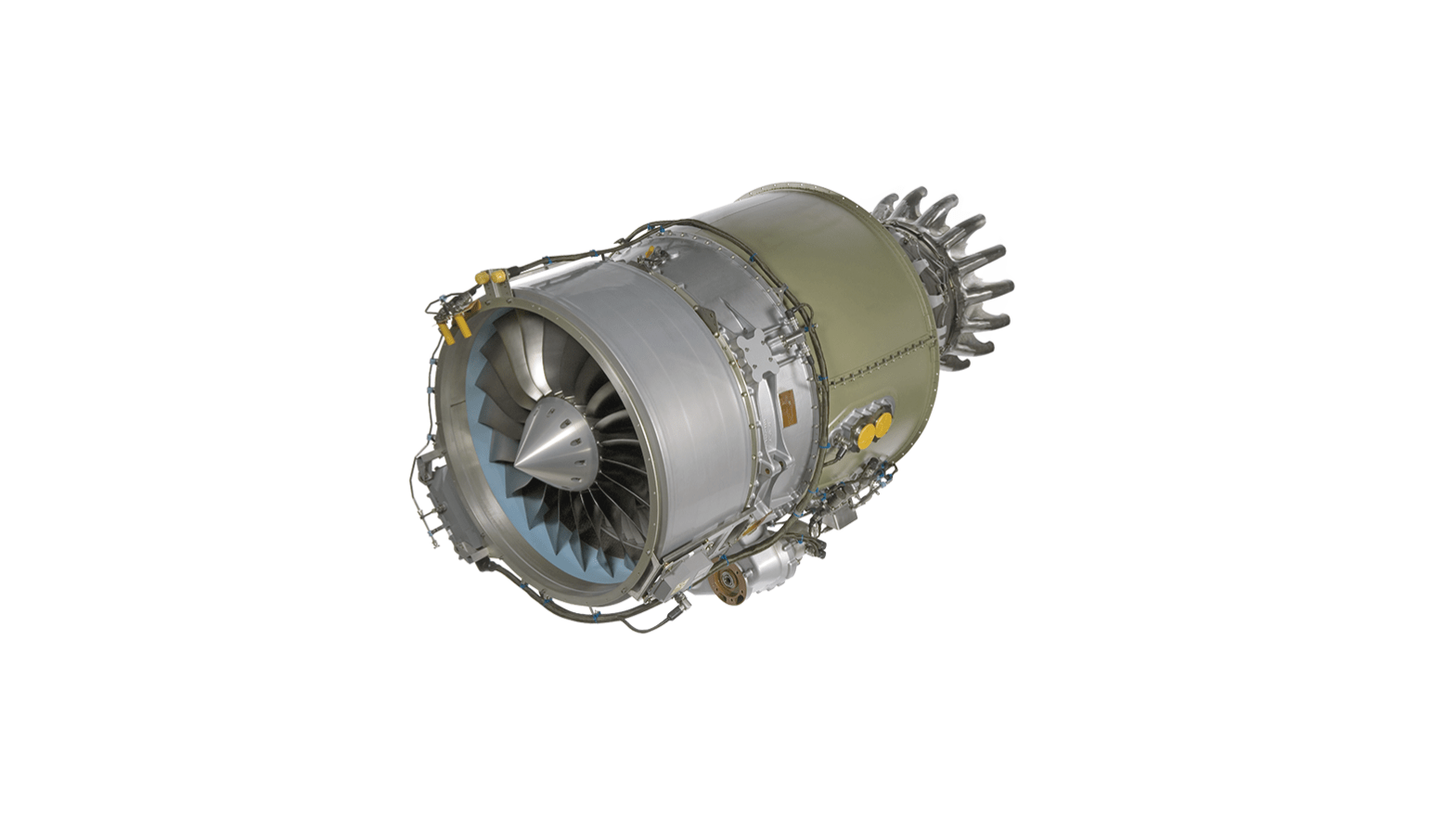

The PW300 is a two-spool engine with a five-stage high pressure compressor driven by a two-stage, cooled high pressure turbine and a three-stage low pressure turbine driving a robust, advanced technology fan. A high-efficiency through-flow combustor, with advanced TALON™ combustion in the latest models, ensures low  fuel consumption. A high efficiency exhaust mixer further contributes to the engine family's low fuel burn and noise. The latest Full-Authority Digital Engine Control (FADEC) in many of the PW300 models provides reduced pilot workload and advanced engine health monitoring/diagnostics, assuring a high standard in aircraft dispatch availability. The result is a compact, lightweight design that powers the majority of mid-size business jets in the market.

Specs

The PW300 family comprises 4 engine series and 13 models, ranging from 4,700 to 8,000 pounds thrust

 Engines   Thermodynamic thrust class* (Pounds)  Mechanical thrust class* (SHP) Height**(inches)   Width**(inches) Length**(inches)
 PW308 Series   8,350   7,000   50  46  84
 PW307 Series   7,500  6,400   47  41  86
 PW306 Series   7,000  6,000  45  38  76
 PW305 Series  5,900  4,700  45  36  81

* Powers are approximate values at take-off. Available at sea level, standard day, static conditions, uninstalled.
** Dimensions are approximate values.
