80% of lightning strikes occur within 3,500 feet of the freezing level.
Get ahead of the storm with accurate threat avoidance
MultiScan ThreatTrack™ uses cutting-edge threat detection technology which enables flight crews to recognize hazards up to 320 nautical miles away throughout all phases of flight.
Thunderstorms can grow at 6,000 feet per minute and have a significant turbulence bow wave above the visible top.
Airlines have seen an increase in serious passenger and crew injuries sustain from a turbulent events.
Airlines can face up to 90,000 hours of delays annually due to weather.
Target what matters

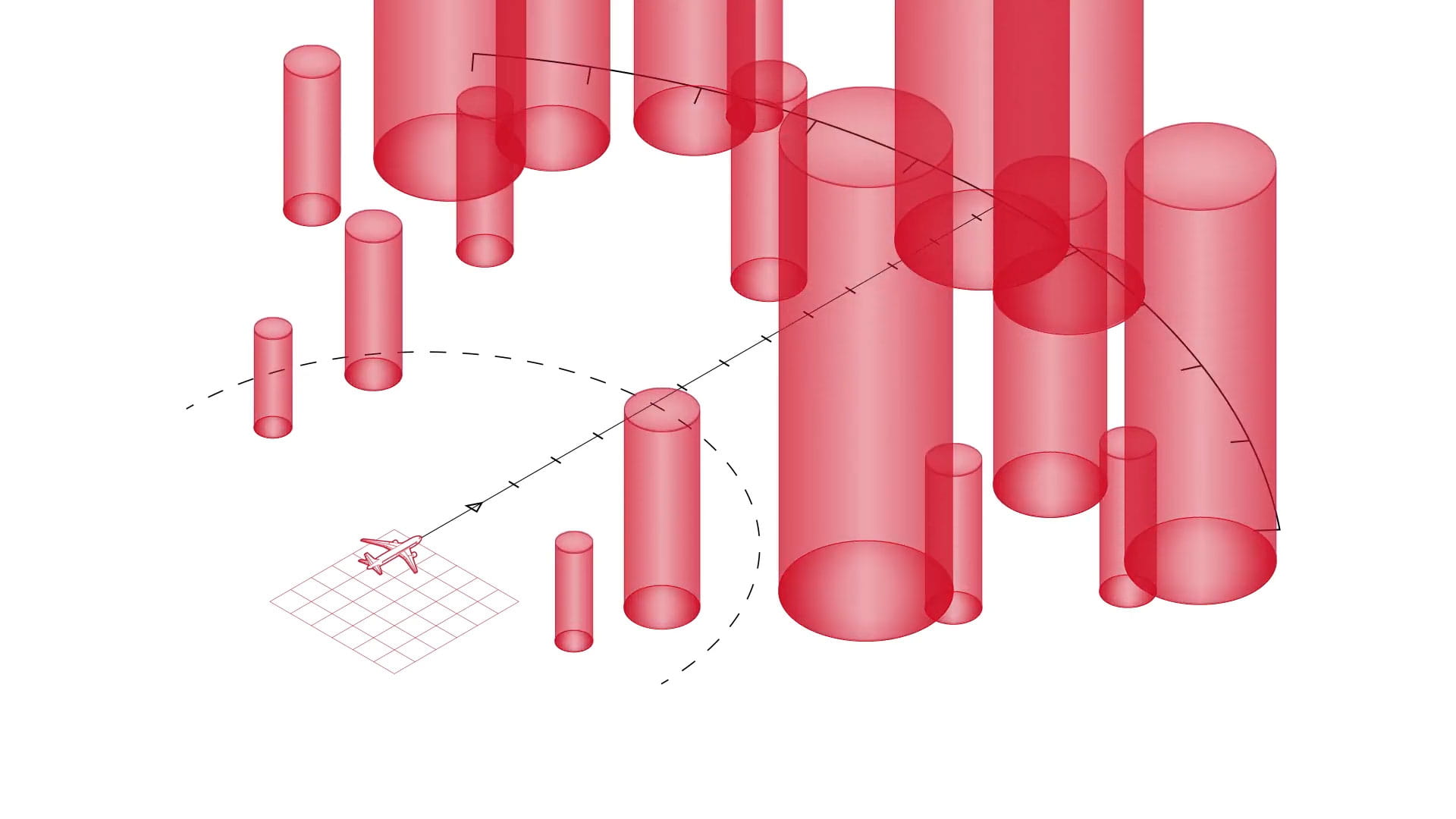

Track-while-scan technology monitors up to 64 cells and alerts flight crews to growing threats up to 320 nautical miles away, eliminating the need for complex, inaccurate 3D display renderings.

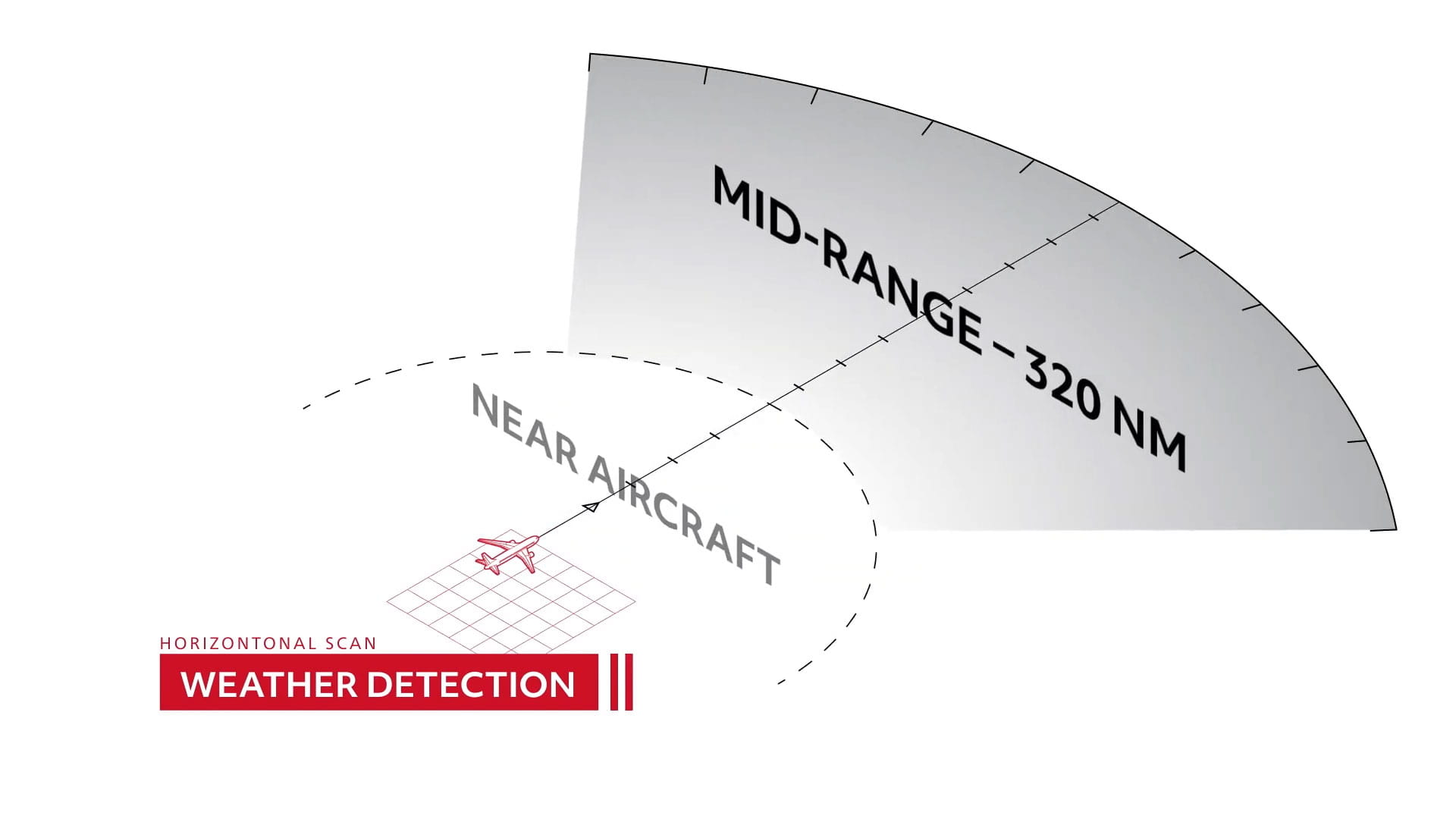

Enabling detection out to 320nm
Without delay, the crew sees emerging threats on-screen and can efficiently deviate, if necessary.
Precision vertical scanning
Our innovative technology monitors up to 64 cells, refreshing displays every 4 seconds (6 seconds with Windshear)

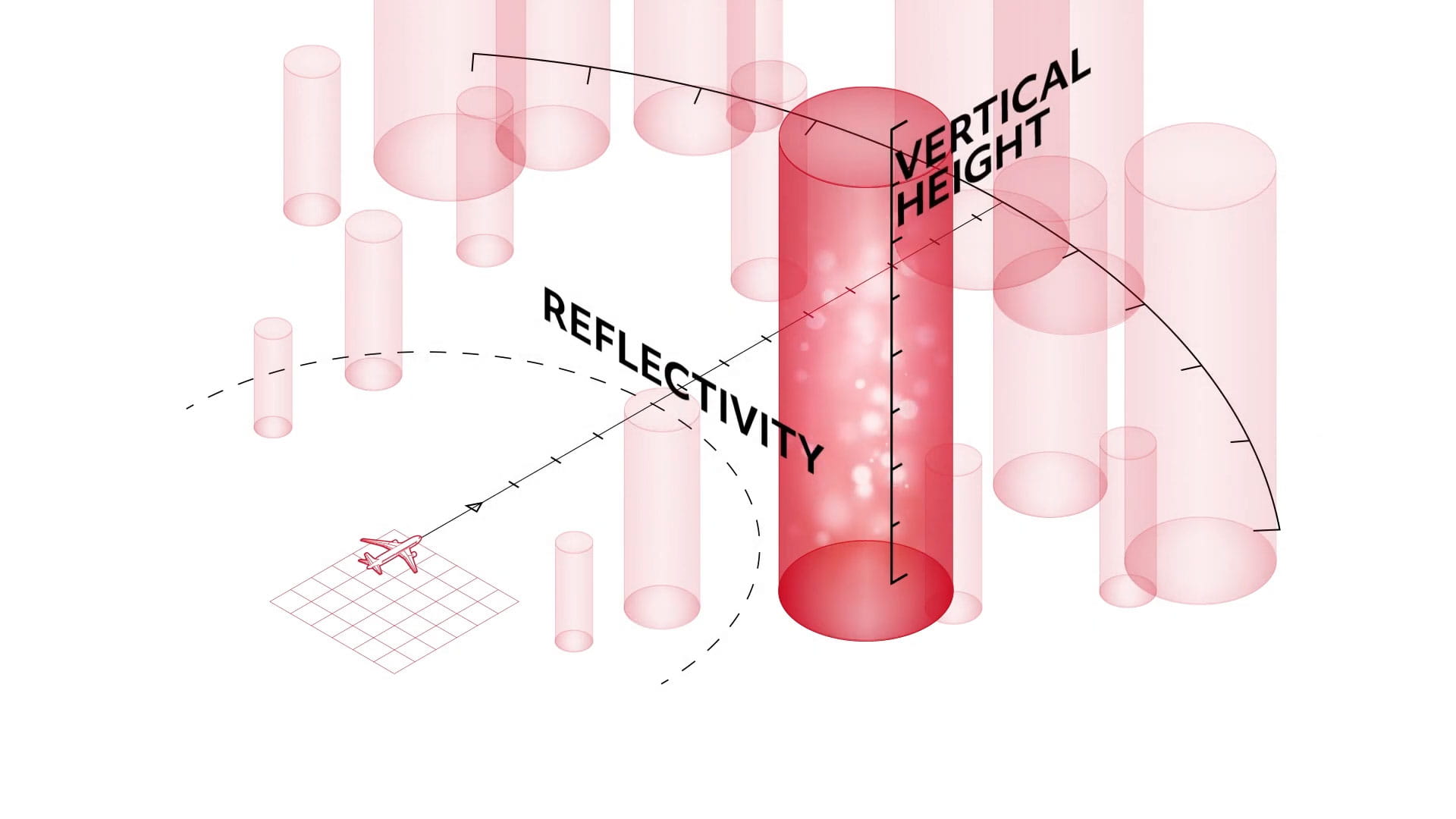

Superior threat analysis
A single vertical scan delivers superior threat analysis by processing active growth rates, convective activity and potential threats to the aircraft.
Improve your situational awareness
Imagine a radar system that eliminates the need to 'trust but verify' when analyzing weather conditions. MultiScan ThreatTrack leverages patented technologies to automatically recognize, evaluate, and intuitively display imminent threats along your flight path.
With MultiScan ThreatTrack, you can trust that your radar system is providing the most accurate and actionable weather data, ensuring safer and more efficient flights.
Automatic global adaptability
By automatically compensating for temperature variations, altitude changes, and global positioning, significantly reducing pilot workload during flight. operations.
Enhanced sensitivity
By eliminating most ground clutter and increases sensitivity automatically to display more non-reflective thunderstorm tops.
Simplified decision making
By providing a comprehensive weather picture. It automatically displays weather threats at your aircraft’s altitude, eliminating the need for flight crews to analyze altitude slices above 25,000 feet. The system accounts for temperature-based gain and geographical location, ensuring accurate threat information without requiring pilot intervention.

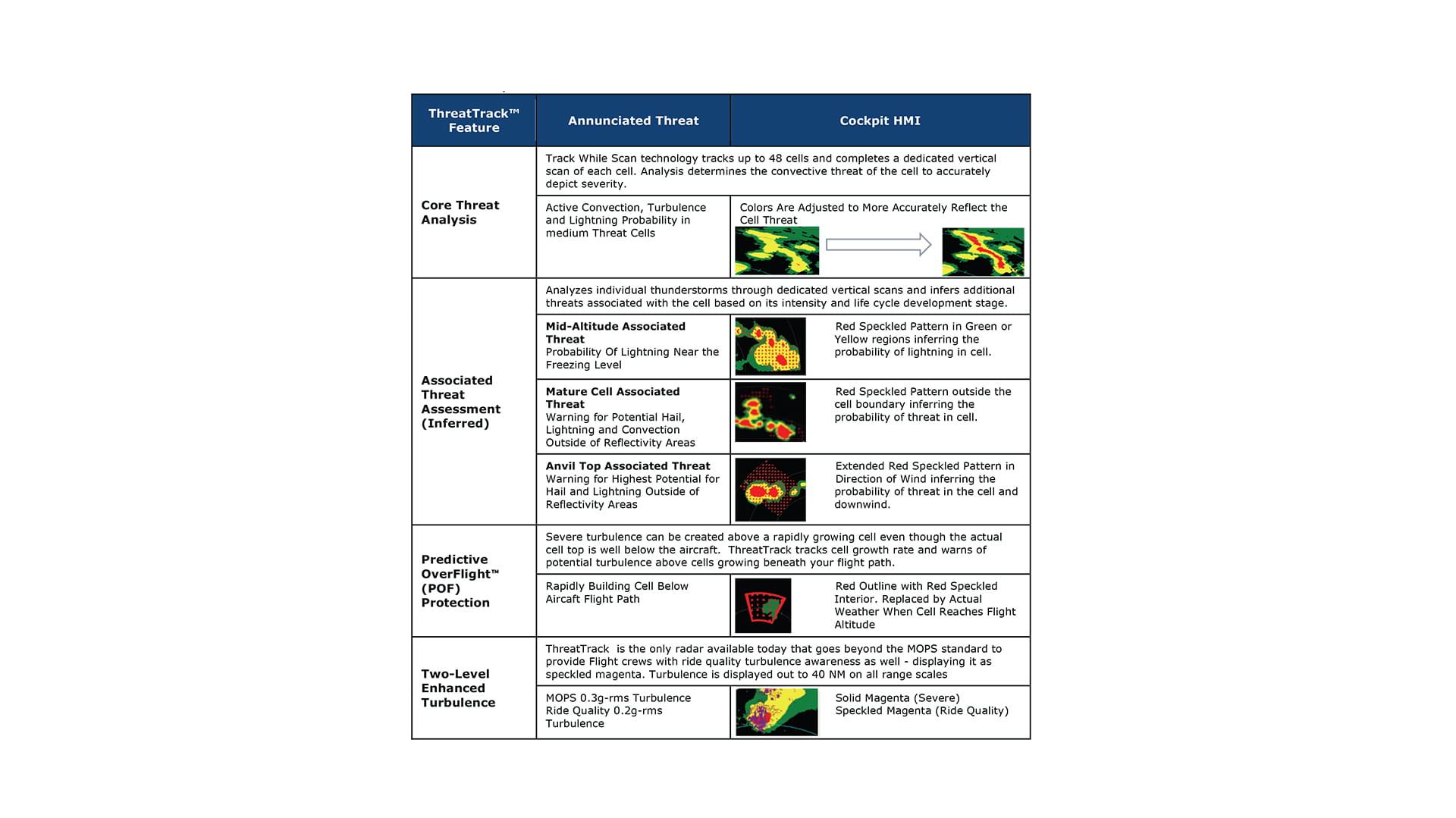

- Core threat analysis display – Provides real-time, intuitive insights into storm dynamics.
- Mid-altitude associated threat – Gain critical insights from a cell’s threat, ensuring your flight path remains safe from lightning.
- Anvil top associated threat – Identifies anvil top threats, ensuring your flight path is clear of hail.
- Predictive Overflight – Anticipates and mitigates turbulent bow waves below the flight path, ensuring a smoother and safer journey for your passengers.
- Two-level turbulence – Precisely distinguishes between ride quality and severe turbulence up to 40 nautical miles ahead.
- Path attenuation compensation – Alerts crews to hidden weather threats behind dense storm cells, enhancing safety and decision-making.
- Quiet, dark cockpit philosophy – Reduces visual clutter, enabling pilots to concentrate on the most critical storm cells, enhancing situational awareness and decision-making.
- Complete situational awareness – Intuitive display that is easily understood.
- Superior ground-clutter suppression – Reduces unnecessary ground clutter, providing a clear and accurate view of critical weather data.
- Track-while-scan technology – Real-time data ensures immediate detection and evaluation of potential hazards.
- Automatic temperature-base gain – Automatically adjusts seamlessly to varying conditions.
- Geographical weather correlation – Automatically adjusts tilt, gain, and clutter suppression to match your current location and conditions.

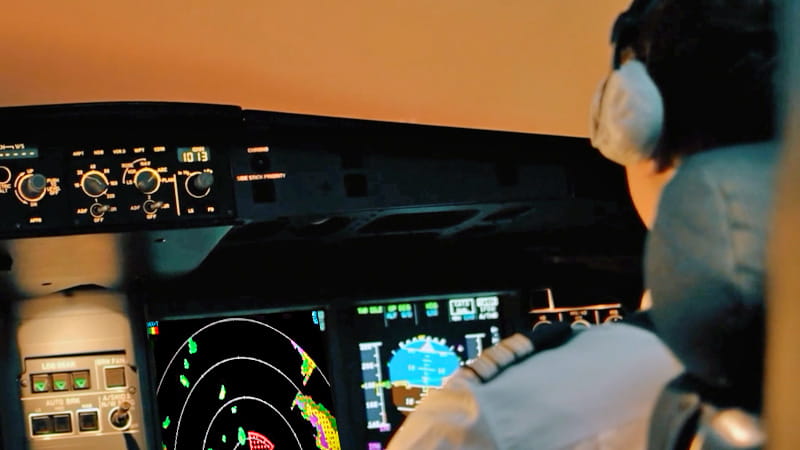

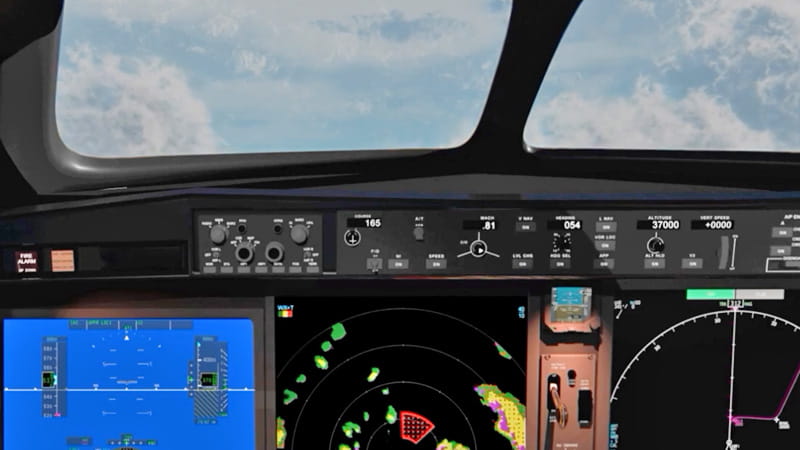

An intuitive operating system with simplified displays
MultiScan ThreatTrack delivers intelligent weather awareness in a quiet, clutter-free cockpit. By automatically monitoring up to 64 storm cells and displaying only those relevant to your altitude and flight path, it reduces distractions and workload. For added control, manual mode lets pilots scan below the aircraft, ideal during descent or when quick decisions are needed. Intuitive, flexible, and always alert, it's complete situational awareness, every flight, every time.
Unparalleled reliability and performance in harsh GNSS environments
At Collins Aerospace, pilot and crew safety is our number one priority. Our architects engineer extra layers of safety and reliability in our products. Next-generation radars, like the WXR-2100A and ISS-2100 ISS V2, utilize GPS for accurate geographical positioning, which can be impacted by RFI jamming and spoofing. To ensure continuous operation and safety, our manual mode is a robust backup system that allows the crew full control of antenna tilt and gain. Additionally, we added a backup to navigate around severe weather, providing you that extra layer of security.
Our legacy radars, such as the WXR-701X and WXR-2100 series with ISS-2100 V1, rely on IRS-based position information, already making them resistant to RFI jamming and spoofing.
Reduce the impact of flight delays within your operations
Airlines face up to 90,000 hours of delays annually due to weather, significantly impacting efficiency and costs. Conducting a comprehensive flight path hazard assessment is essential for delivering a more reliable travel experience for your passengers.
By providing a complete weather picture for both tactical (short ranges) and strategic weather (longer ranges), your crew has a thorough understanding of weather-related risks during each phase of flight. This enables planning and early decision-making, ultimately leading to more cost effective flight operations.
Ensure continuous operations with future-ready technology
Invest in hardware that evolves with you. Our newest WXR-2100A is a cutting-edge system designed with future-proof functionality, ensuring that as new advancements in threat detection emerge, software upgrades deliver new features to the cockpit. This keeps your fleet at the forefront of technology, providing continuous improvements without the need for costly hardware changes.

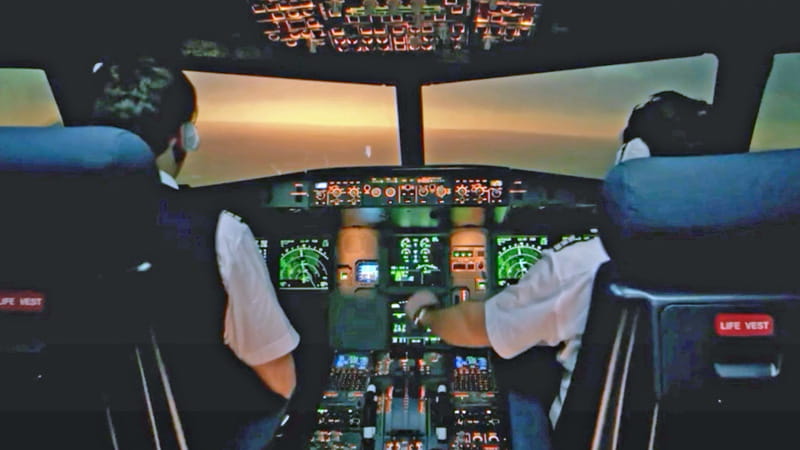

Trust in proven performance with MultiScan ThreatTrack
Experience the reliability of a trusted partner, Collins Aerospace and MultiScan ThreatTrack. Our global flight tests have validated its exceptional threat detection capabilities across diverse weather conditions. Utilizing a comprehensive database of geographic and seasonal weather variations, MultiScan ThreatTrack ensures maximum performance worldwide.
Discover how our technology can enhance operational efficiency and safety for your fleet. Backed by Collins Aerospace's renowned global service capability and 24/7/365 customer support, MultiScan ThreatTrack promises unparalleled reliability and continuous support.
