EP-8100

The EP®-8100 image generation system is designed for mission success. In a market where all other image generators are based on video-game graphics cards, the EP-8100 is driven by real-time, simulation-specific graphics cards and software designed for your real mission. It provides unmatched procurement cycles of five to eight years and life-cycle support in excess of 15 years. While leveraging game-like concepts, the real-time software is specifically designed for simulation and training applications.

EP-8100 features and benefits

  • Meets FAA’s highest standard for simulator requirements, up to Level D compliancy
  • Industry-leading image quality and very high resolution, yielding superior pilot cues and “calligraphic equivalent” light point processing
  • Most realistic and effective weather and atmospheric simulations on the market
  • Intensifies light and allows greater visibility at distances
  • The industry’s largest dedicated texture memory (16 GB of texture memory, 37 GB total memory), with higher texture resolution
  • Commercial off-the-shelf PC technology paired with a graphics pipeline composed of field programmable gate arrays
  • Pixel fill rates that drive the latest high-resolution projectors, supporting greater than 10 million pixels
  • Maintainable and upgradable in the field
  • Life cycle support of 15+ years to protect your investment in the long term

EP-8200

The Collins Aerospace EP-8200 image generation system leverages commercial off-the-shelf PC and advanced FPGA technology to deliver exceptional fidelity and performance for military and commercial flight simulators. Built on the proven EP-8100 architecture, the EP-8200 features a fully programmable graphics pipeline that protects existing visual system investments while enabling scalable growth and technology insertion over the life of the program.

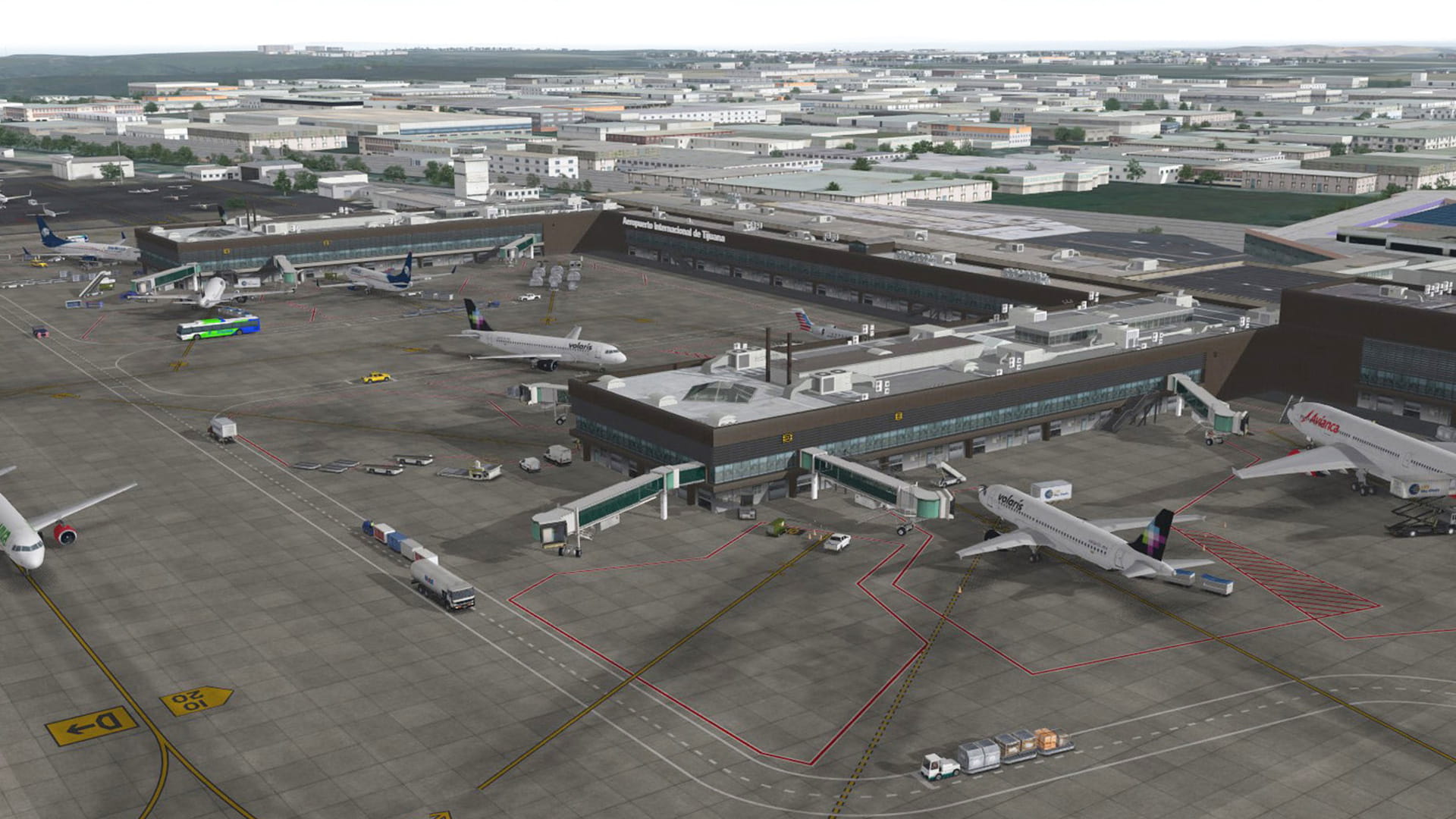

Computer rendering of airplanes parked at an airport terminal.

EP-8200 features and benefits

  • Enhanced situational awareness and pilot training fidelity
  • High performance graphics with scalable processing that drives large, detailed scenes
  • Programmable pipeline that supports feature growth through firmware upgrades
  • Modular architecture for tailored performance and future scalability
  • Large memory capacity (64 GB texture, 192 GB total) for high-resolution terrain and sensor views
  • Multi-display support for up to three 4K or six HD channels per processor
  • Whole-Earth environment with automatic airfield generation for broad training coverage
  • Advanced environmental effects including regional weather, atmospheric lighting, and high-fidelity rain and snow
  • Standards-aligned for military and commercial Level D simulator requirements
  • Long lifecycle support with reliable operation and investment protection
